Flat bar has a flat surface and rectangular face, making it extremely versatile for a variety of projects.

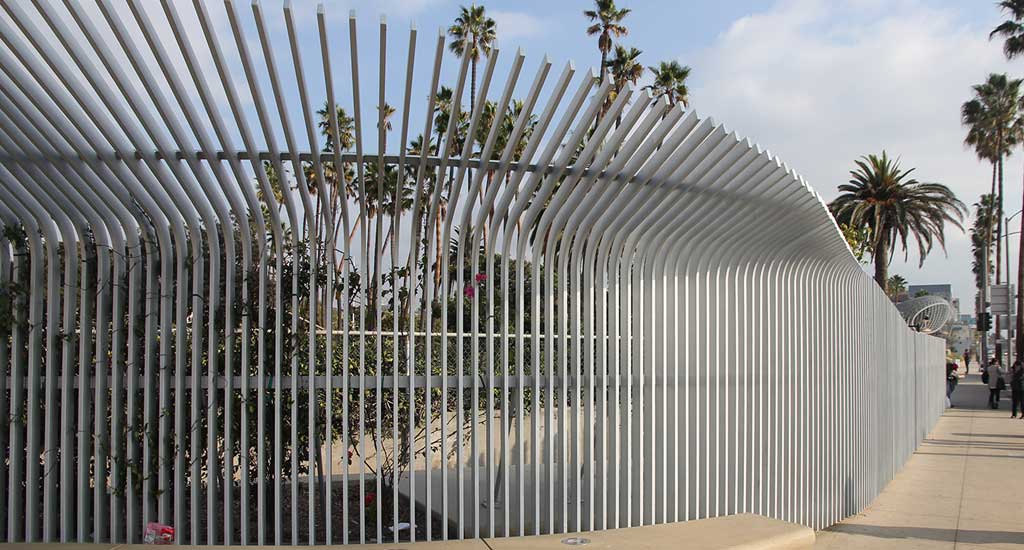

At Al Mouhana Trading Company, we offer high-quality flat steel bars that are widely used across structural, fabrication, and industrial applications. With over 40 years of trusted service in Saudi Arabia, our flat bars are available in a range of sizes, thicknesses, and finishes to suit every project’s specifications. Fabrication of gates, grills, and platforms, Brackets and structural support, Reinforcement in construction, Frames for machinery and shelving Available in bulk for industrial-scale projects.
Dimensions and tolerances for flat bars 60mm90mm in sccordance with ASTM A6/6M
Dimensions Masses and Tolerances 100mm - 150mm in accordance with SULB Standard
Surface Condition in accordance with EN 10163-3, class C, subclass 1
Designation | Weight per M | Length (M) | Dimensions (mm) |
---|---|---|---|
A   B | |||
0.5" × 1.2 | 0.60 | 6 | |
25×8 | 1.57 | 6 | 25×8 |
30×5 | 1.18 | 6 | 30×5 |
30×8 | 1.88 | 6 | 30×8 |
30×10 | 2.35 | 6 | 30×10 |
40×5 | 1.57 | 6 | 40×5 |
40×6 | 1.88 | 6 | 40×6 |
40×8 | 2.51 | 6 | 40×8 |
40×10 | 3.14 | 6 | 40×10 |
40×15 | 4.71 | 6 | 40×15 |
40×20 | 6.28 | 6 | 40×20 |
50×5 | 1.96 | 6 | 50×5 |
50×6 | 2.36 | 6 | 50×6 |
50×8 | 3.14 | 6 | 50×8 |
50×10 | 3.93 | 6 | 50×10 |
60×10 | 2.83 | 6 | 60×6 |
60×6 | 3.77 | 6 | 60×8 |
60×8 | 4.71 | 6 | 60×10 |
75×6 | 3.53 | 6 | 75×6 |
80×6 | 3.77 | 6 | 80×6 |
80×8 | 5.02 | 6 | 80×8 |
80×10 | 6.28 | 6 | 80×10 |
100×6 | 4.71 | 6 | 100×6 |
100×8 | 6.28 | 6 | 100×8 |
100×10 | 7.85 | 6 | 100×10 |
100×12 | 9.42 | 6 | 100×12 |
