We have a wide range of Stainless Steel Angles to suit your requirements.
Al Mouhana Trading Company provides high-quality steel angles (L-angles) that offer excellent structural integrity, versatility, and cost efficiency. Manufactured to meet industrial and construction-grade standards, our angle bars are widely used in framing, support, and fabrication across Saudi Arabia.
In accordance with EN 10056-1
Tolerances in accordance with EN 10056-2
Surface Condition in accordance with EN 10163-3, class C, subclass 1

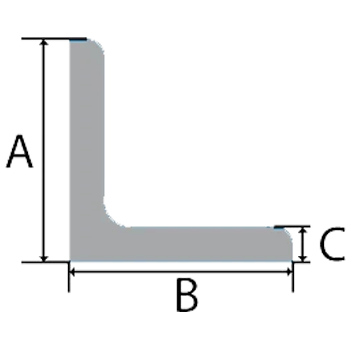

Designation | Weight per M | Length (M) | Dimensions (mm) |
---|---|---|---|
A   B   C | |||
40×40×3 | 1.84 | 6 | 40×40×3 |
40×40×4 | 2.42 | 6 | 40×40×4 |
40×40×5 | 2.97 | 6 | 40×40×5 |
50×50×3 | 2.33 | 6 | 50×50×3 |
50×50×4 | 3.06 | 6 | 50×50×4 |
50×50×5 | 3.77 | 6/12 | 50×50×5 |
60×60×5 | 4.57 | 6 | 60×60×5 |
60×60×6 | 5.42 | 6 | 60×60×6 |
70×70×6 | 6.38 | 6/12 | 70×70×6 |
75×75×6 | 6.79 | 6 | 75×75×6 |
80×80×6 | 7.34 | 6 | 80×80×6 |
80×80×8 | 9.66 | 6 | 80×80×8 |
90×90×7 | 9.61 | 6 | 90×90×7 |
90×90×9 | 12.2 | 6 | 90×90×9 |
100×100×10 | 15.1 | 6 | 100×100×10 |
100×100×7 | 10.7 | 6 | 100×100×7 |
150×150×12 | 27.3 | 12 | 150×150×12 |
